DCTANK AW1
$74,900.00 USD
$74,900.00 USD
/
Shipping calculated at checkout.
Protected Purchase — Free 30-Day Returns
Low stock
5+ Units
Get 10% off
10+ Units
Get 15% off
20+ Units
Get 20% Off
Everything Included. Delivered Worldwide. Protected.
📦 Free worldwide shipping on all orders.
🔌 Power Supply (PSU) and all cables included
🛡️ 30-day buyer protection & free returns.

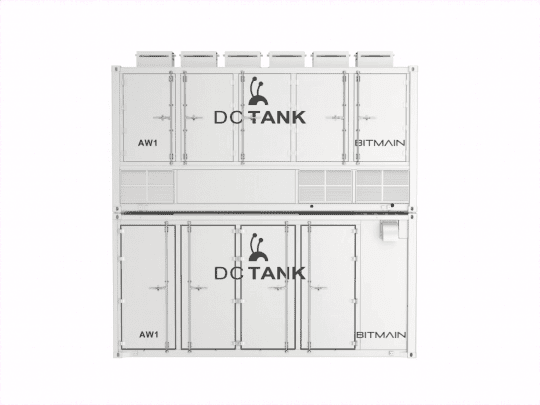

Specification Details For DCTANK AW1
| Product Overview | Value |
| Model | DCTANK AW1 |
| Dimensions (l*w*h), mm | 6058×2438×2896 |
| Server capacity, U | 376 |
| Container certification | CCS |
| Safety certification | NFPA 79:2024 UL 508A:2018 R7.22 CSA C22.2 No. 301:23 ANSI/ISO 12100:2012 EN ISO 12100:2010 EN 60204-1:2018 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Total IT load, KW | 120 |
| Detailed Characteristics | Value |
| Shipping weight, T | 4.6 |
| Main Switch of Power Distribution Cabinets(A) | 250×2 |
| Rated current, A | ≤405 |
| Number of server cabinets | 8 |
| Single cabinet capacity, U | 47 |
| Single cabinet power density, KW | 15 |
| Inlet cable | The incoming cable requires two three-phase, five-wire cables, each with the following requirements: L1 single core cable 350kcMil（185mm²） L2 single core cable 350kcMil（185mm²） L3 single core cable 350kcMil（185mm²） N Single-core cable 250kcMil（127mm²） PE single-core cable 250kcMil（127mm²） |

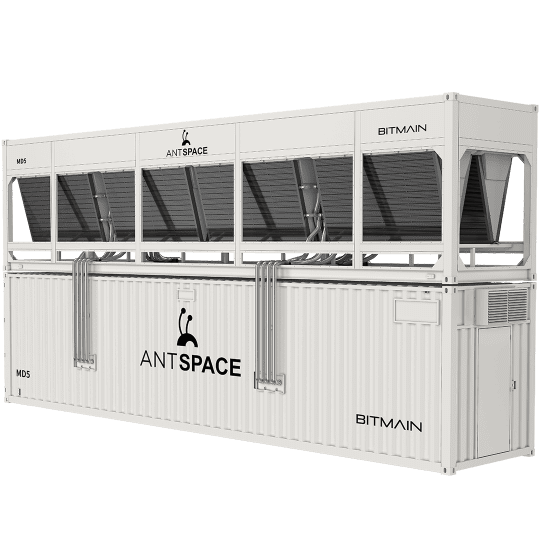

Specification Details For Cooling Tower
| Product Overview | Value |
| Dimensions (l*w*h), mm | 6058×2438×2896 |
| PUE(Power usage effectiveness)@ 25℃ ambient temperature | 1.11 |
| Rated Cooling Capacity, kW | 120 |
| Container certification | CCS |
| Motor Rated Voltage and Frequency | AV 400V±5%; 50/60Hz |
| Detailed Characteristics | Value |
| Shipping Weight, T | 5.8 |
| Operating Weight, T | 7.8 |
| Supply Air Temperature, ℃ | 25 |
| Return Air Temperature ,˚C | 38 |
| Water Consumption @ 25˚C, m3/h | 0.2 |
| Noise Level @ 25˚C, 15m, dBA | 75 |
| Operating Temperature ,˚C | -40~+45 |
| Operation Humidity, RH | 5%~95% |
Payment Methods
We accept payments in cryptocurrencies such as Bitcoin, Ethereum, and USDT. For a complete list of payment options, visit our Payment Methods page.
Shipping and Delivery
Worldwide Delivery: We deliver globally through DHL and UPS.
Secure Delivery: Signature is required upon delivery for added security.
Fast Order Processing
All orders are processed within 48-72 Hours after payment confirmation. We ensure efficient handling to get your equipment to you as quickly as possible.
