Fog Hashing Hydro Cooling Suit H200-S – Overview

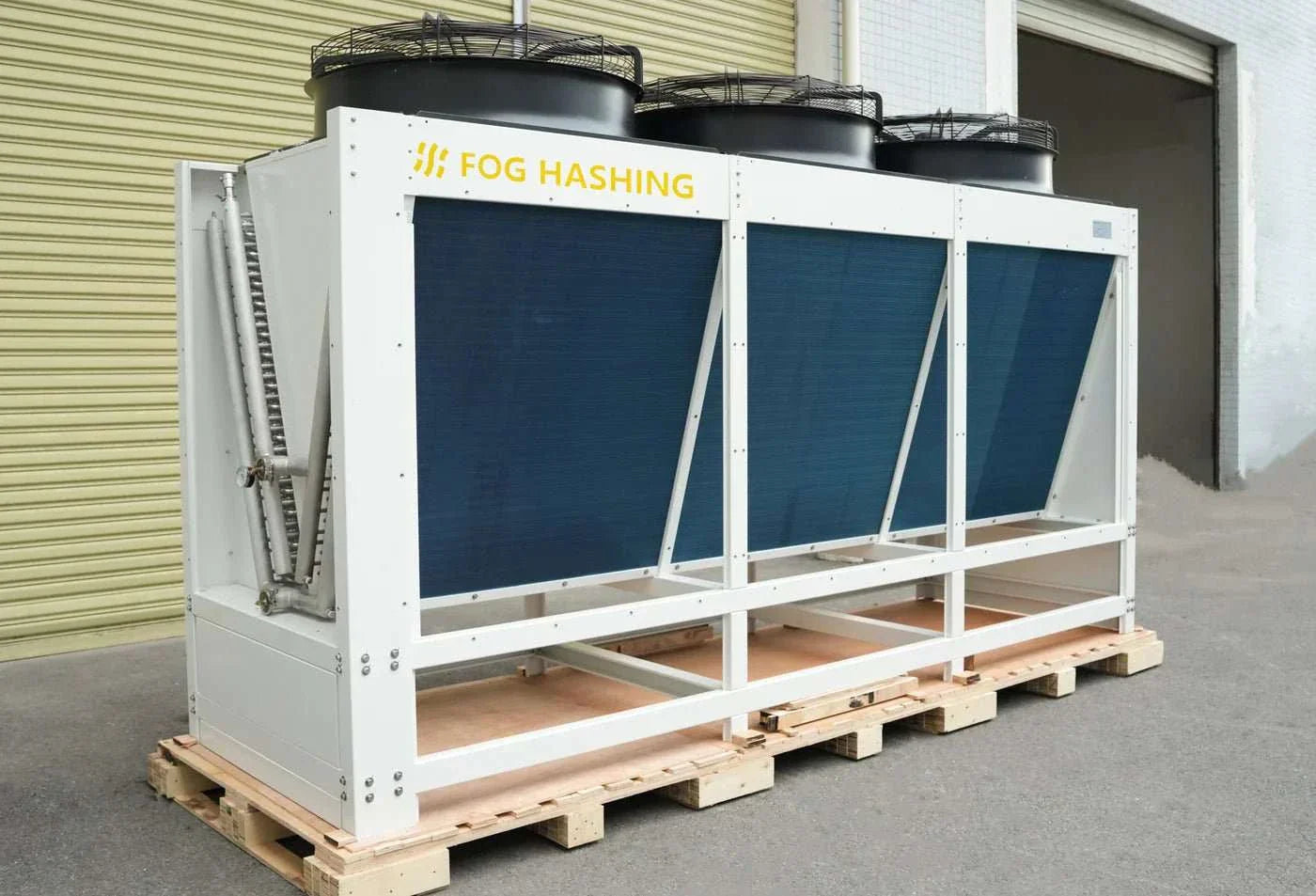

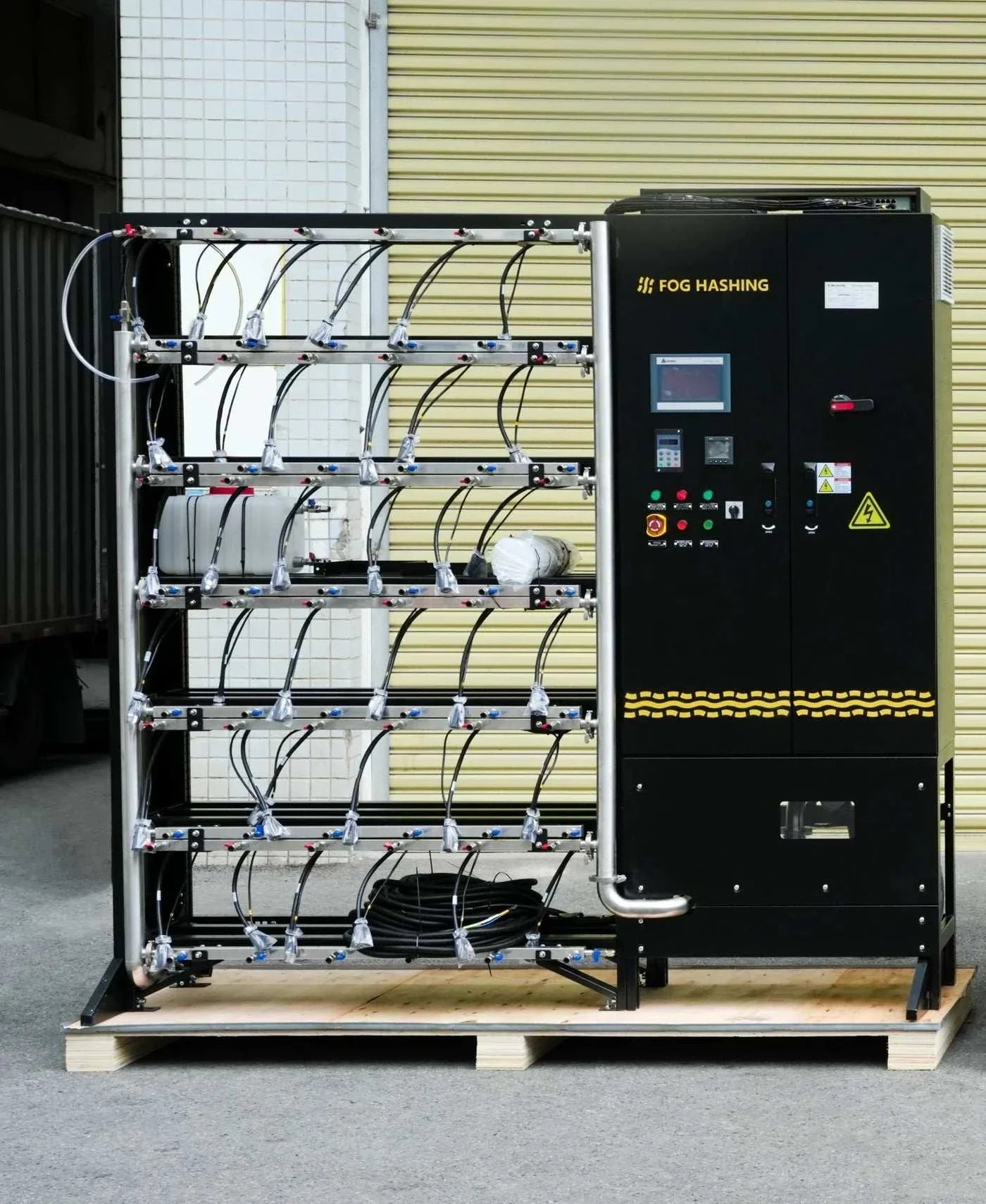

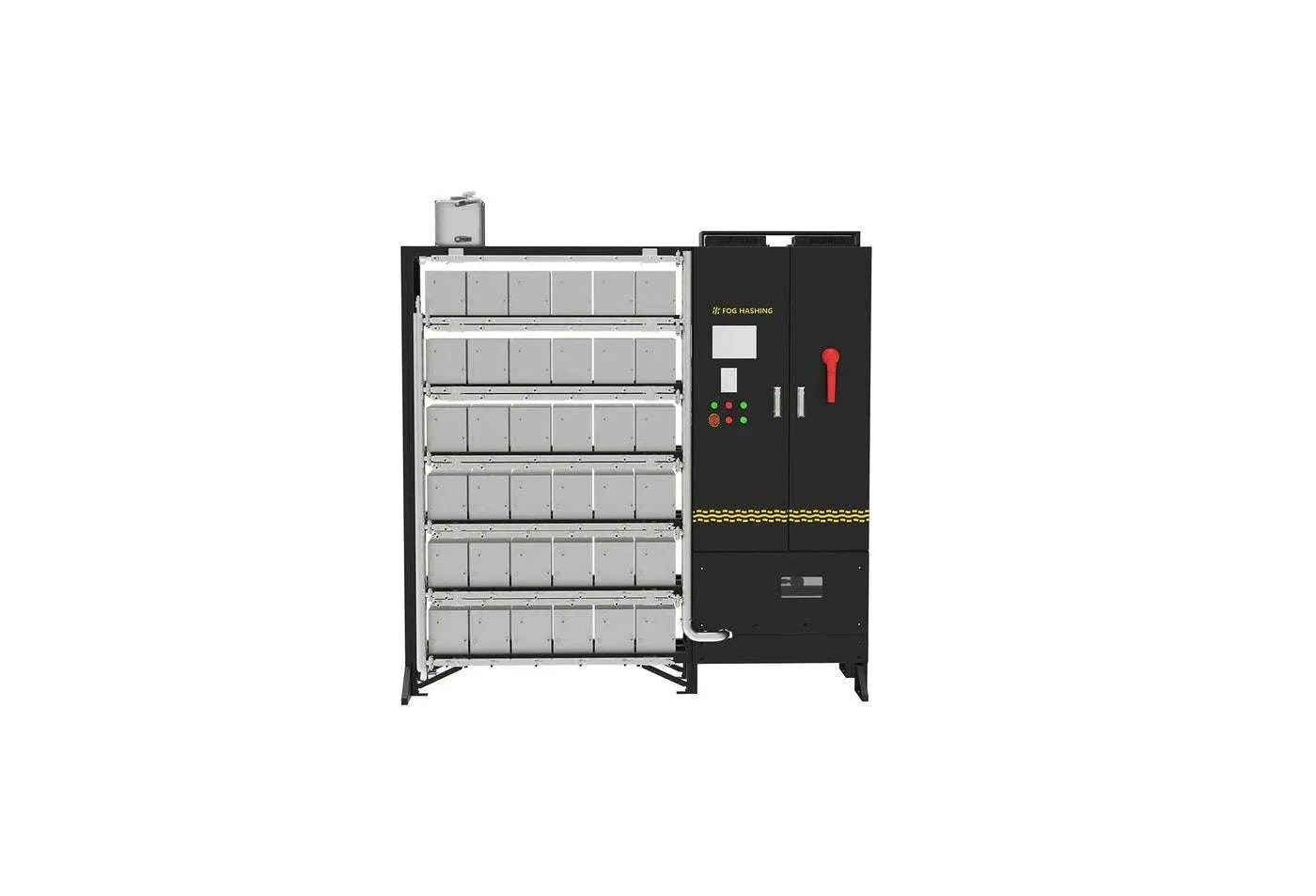

The H200-S Hydro Cooling Suite is a 200 kW liquid cooling solution designed for large-scale hydro mining operations, providing efficient water-based heat dissipation for hydro-cooled ASIC miners. It is built as a modular rack + CDU + dry cooler system capable of supporting a substantial number of hydro miners, typically up to 36 Antminer S19/S21/S23 Hydro units in a single integrated setup.
Key Features
-
High Cooling Capacity: ~200 kW designed for warehouse or data-center-scale mining.
-

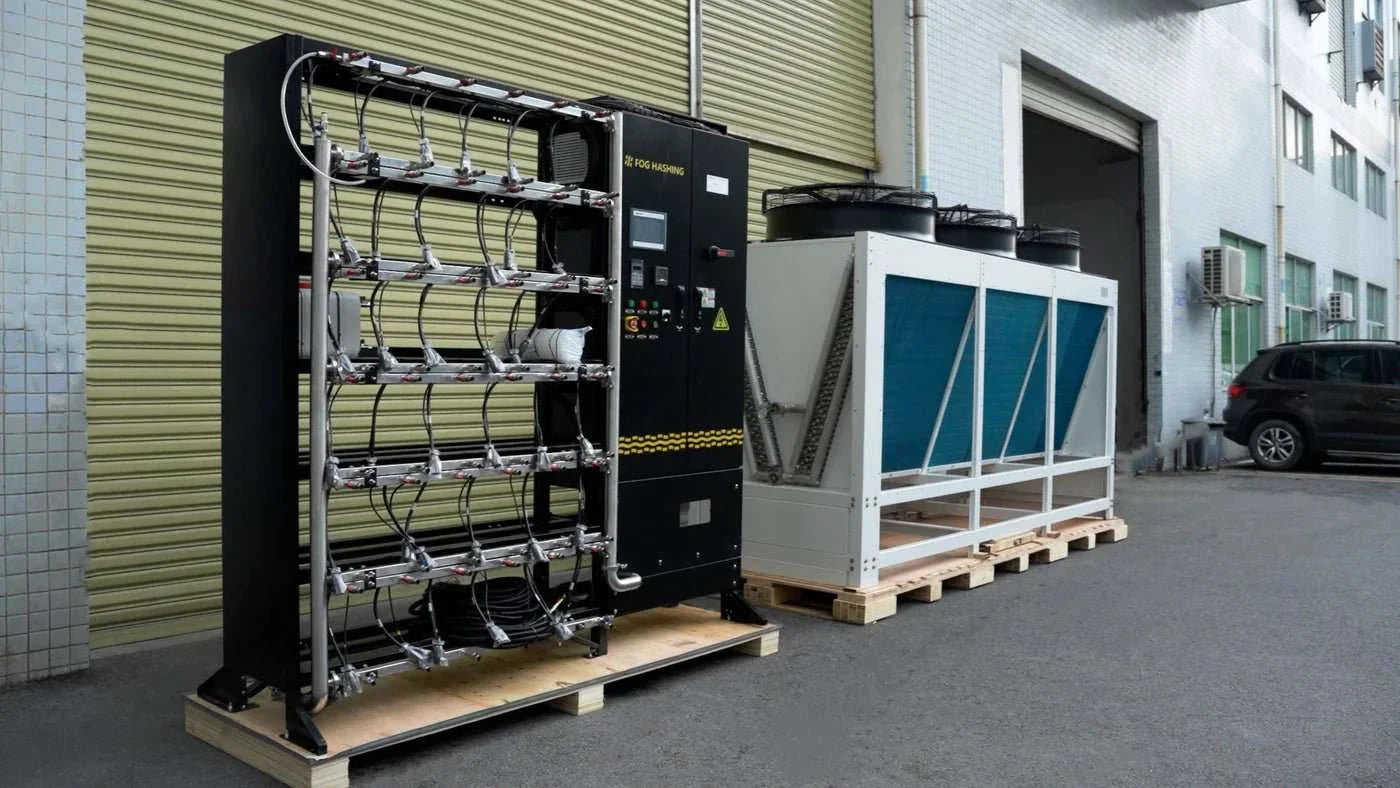

Modular Design: Includes separate rack, Cooling Distribution Unit (CDU), and dry cooler for scalable and maintainable deployment.
-
Large Miner Support: Capable of cooling up to ~36 hydro miners (e.g., Antminer S19, S21, or S23 Hydro).
-

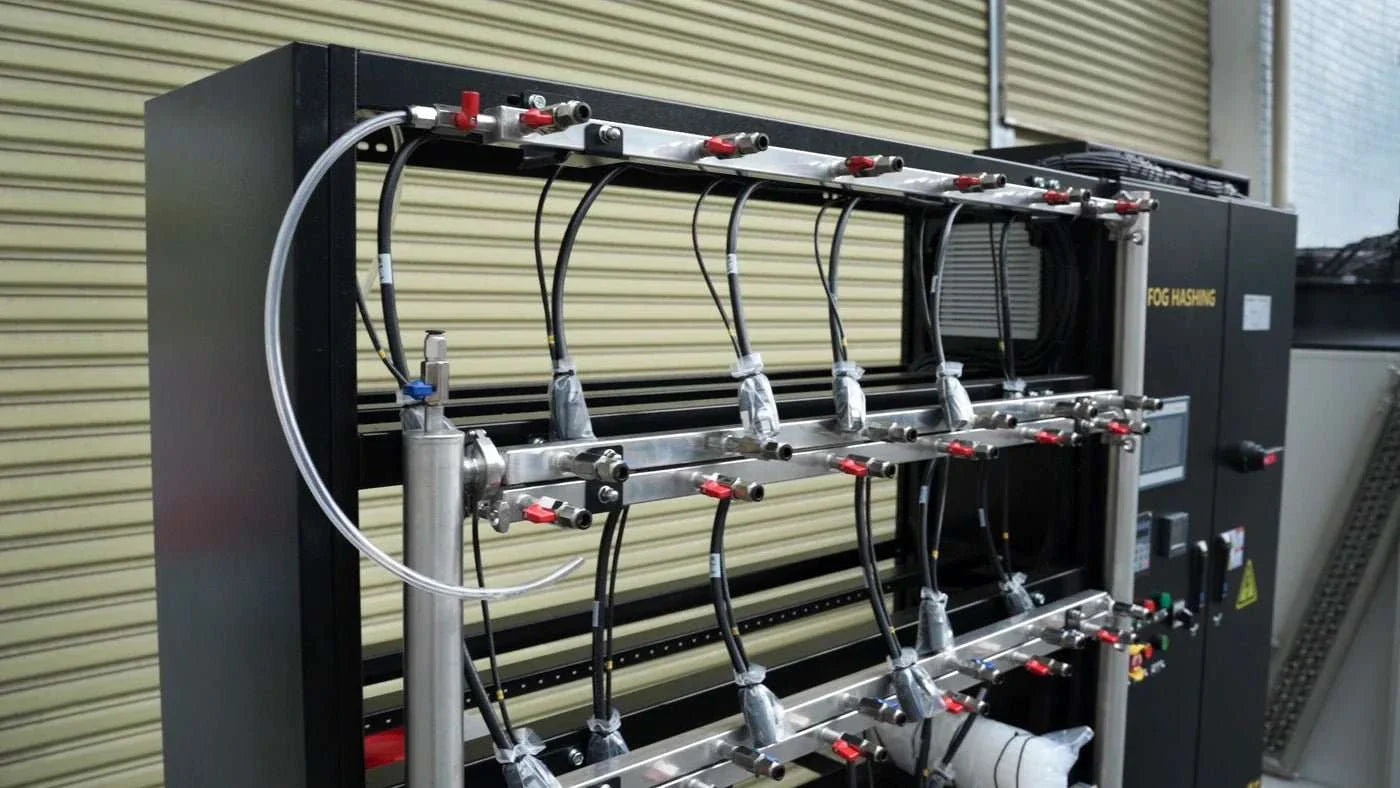

Industrial-Grade Construction: Stainless steel manifolds and quick-connect hoses for robust water handling.
-
Automated Control: Often includes PLC-based monitoring and control for flow/temperature regulation.
Typical Specifications
| Specification | Details |
|---|---|
| Cooling Capacity | ~200 kW |
| Max System Power Load | ~226 kW |
| Miner Capacity | ~36 Antminer S19/S21/S23 Hydro |
| Dimensions | ~1550 mm (W) × 2200 mm (H) × 400 mm (D) |
| Input Voltage | 3-Phase 380–415 V, 50/60 Hz |
| Operating Temp Range | –25 °C to 35 °C |
| Operating Humidity | 5 %–95 % RH |
| Cooling Medium | Water/softened water + antifreeze + corrosion inhibitor |
| Flow Rate | ~20 m³/h |
Additional Notes
-
The H200-S system typically includes PLC control and support for network monitoring interfaces.
-
Some deployments support optional heat recovery integration for secondary usage (e.g., heating with waste heat).
